Tool For REPLACING CAM BEARINGS -- TS-206

You can of course let your friendly machine shop replace your cam bearings. But if you want to do it yourself you can make your own bearing puller tools (if you have a lathe handy).

cam bearing guide drawing The pullers should be made of soft aluminum alloy as shown in the drawing, with the dimensions shown below.

Alloy Puller
Dimensions
Dia 'A' Dia 'B' Length 'C'
Front
Center
Rear
1.760"
1.705"
1.600"
1.900"
1.840"
1.735"
1.490"
1.200"
0.900"

cam bearing tool set You will also need a length of 1/2 inch or 12 mm diameter threaded rod with nuts and washers, a steel bar about 1/4" x 2" x 4" long with a 9/16" hole in the center, and a couple of standard wrenches.

Find instructions for use of this tool at Cam Bearings - CM-103.

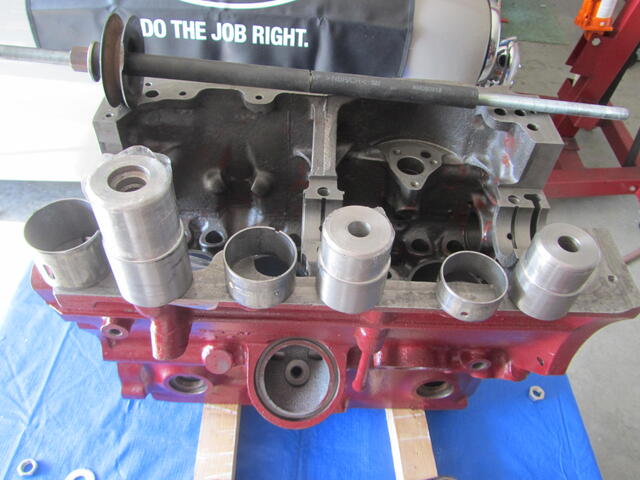

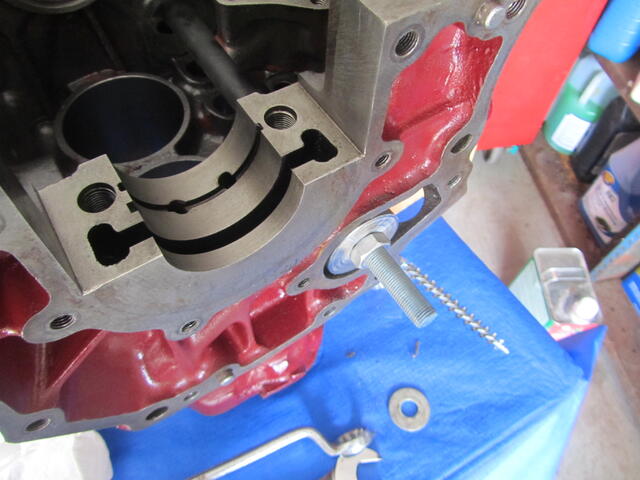

cam bearing puller cam bearing puller cam bearing puller
Photos compliments of Don Tremblay in Rutland, MA, USA
