REAMING the Front Suspension BRONZE BUSHINGS -- FS-201
Page 3 of 9

You will need to hold the swivel link firmly in a bench vice. Insert the shank of the reamer through the bushing with the guidance sleeve on the shank. Position the back of the reamer cutting flutes against one end of the bushing, and push the guidance sleeve inside of the other end of the bushing, about flush with the end of the bushing.

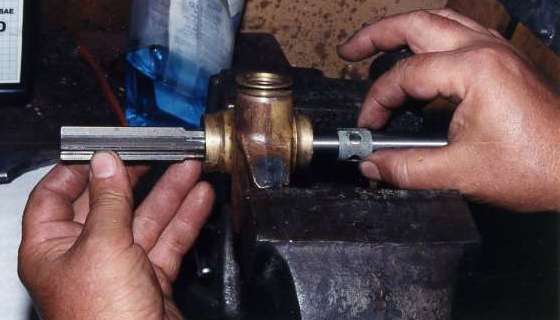

Aligning the reamer and the sleeve inside of the new bushing
