PART NO. SPL.PAGE DESCRIPTION
88G257 16.A.9 Plug -drain -(oil reservoir, engine, 1600)
88G257 16.A.30 Plug -drain -(oil reservoir, engine, 1622) -part no. changed, was
2F4249 and 2A380

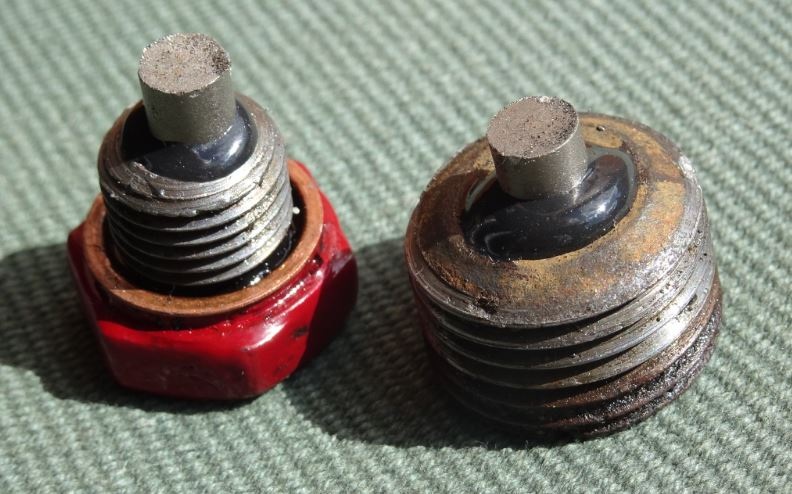

2F4249X aftermarket Plug - drain - oil reservoir -magnetic
Drain plug for Austin B-series engines, 1953-1980 (except Twin Cam).
The magnetic plug is an aftermarket accessory, not an original factory issue part number.
Part number was changed from 2F4249 to 2A380 then 88G257.
Thread size is 3/4-14-AFT (Admiralty Fine Thread). This is a Whitworth thread form with 55-degree thread angle, 0.747" major diameter.
Use with 6K638 Washer for plug (3/4" copper crush washer).
|
