PART NO.  SPL.PAGE  DESCRIPTION
11G9093   15.N.8    Flasher unit -(1500)
11G9093   16.N.12   Flasher unit -(1600 and 1600-MK-II)
11G9093   TC.N.10   Flasher unit -(flasher-horn-controls, electrical, Twin Cam)

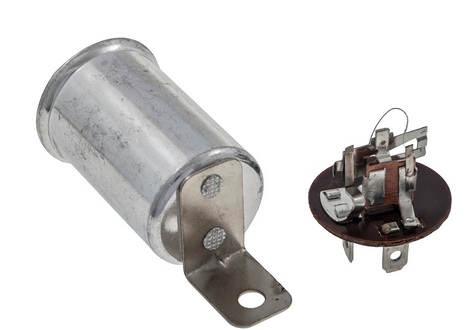

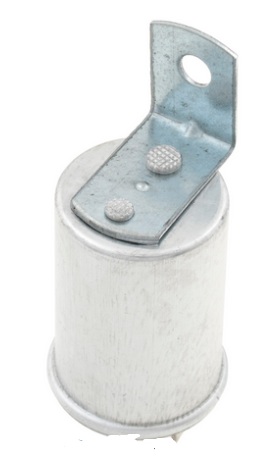

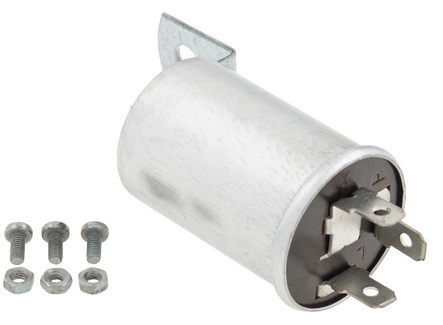

NOTICE: The pictures above are not as original for the MGA. The pictures are for an aftermarkrt part number GFU2101, which is a very poor reproduction part. The riveted "L"shape mounting tab and shape of the canister are correct. There are no markings on the canister, where original parts had the name "LUCAS" stamped in the cannister wall along with the Lucas part number and production date. The push-on spade terminals have clearance holes where original parts had extruded/embossed holes with tapped threads to accept pan head screws. Without the tapped threads, the ring lug wire ends of the original harness have to be secured with small screws and loose nuts, which is a general pain for installation, as well as not original apperance. The functional thermal flasher unit that fits inside is much smaller than the original parts which mostly filled the the canister). And the reliability of this unit is somewhat suspect with many reports of early demise. Let the buyer beware.

For more information on diagnosing and testing a thermal flasher unit, see ET-104
