SEALING WASHERS, Copper and Fiber - CF-151
I often have problems with small sealing washers falling out of their designated baggies and becoming lost or loose and unidentifiable. There are also occasions when I need a seal washer I don't have in hand, and it is a royal PITA to have to place a parts order and wait (especially when minimum shipping charge is more than the cost of the part). So I have compiled this list of every copper and fiber sealing washer used in the MGA (and common to some other cars as well). It is listed first in order of sizes, ID x OD x Thickness so you identify a loose part with corresponding part numbers and where it is used. It should also help to find a part at a local hardware or auto parts store. Immediately following is a spread sheet copy (click to download) that you can sort in order of part numbers (or any other way you like) .
IDxODxThickness |
BMC No. |
Moss No. |
Name |
Where Used |
0.310x0.560x0.060 |
2K4958 |
324-610 |
Washer, fiber 5/16 ID |
tappet cover (2), gearbox side cover (1), water pump |
0.380x0.685x0.016 |
AUC2122 |
370-250 |
Washer, copper |
upper jet bearing, see Carburetorsp |
0.393x0.590x0.045 |
3H2287 |
324-730 |
Washer, copper |
Master cylinder clutch adapter bottom, brake hose front (1500) and rear (all), rear brake banjo bottom |
0.440x0.680x0.057 |
3H549 |
324-720 |
Washer, copper, (alt 7H7456) |
Master cylinder clutch banjo bottom, clutch slave banjo bottom, clutch slave hose, rear brake banjo top -part no. change; was 7H7456 |
0.440x0.680x0.057 |
7H7456 |
324-720 |
Washer, copper, (alt 3H549) |
Master cylinder clutch banjo bottom, clutch slave banjo bottom, clutch slave hose, rear brake banjo top -part no. changed to 3H549 |
0.440x0.870x0.063 |
AUC1384 |
372-180 |
Washer. fiber 7/16 ID |
MGA 1600 banjo stud to throttle body, see Carburetors |
0.500x0.630x0.060 |
AUC1928 |
370-160 |
Washer, fiber, C63, internal teeth |
carb float cover vent banjo bottom, see Carburetors |
0.515x0.688x0.070 |
6K638 |
324-626 |
Washer, copper, 13mm ID |
engine transverse oil hole plug, oil gauge union, oil drain plug (1/4-BSPP thread, 13mm, 19-TPI) |
? |
300398 |
324-660 |
Washer, copper (crush) |
water union 1500 heater return -Moss UK 232043A |
? |
AAA4657 |
324-660 |
Washer, copper (crush) |
water union 1600 heater return -Moss UK 232043A |
? |
BHA4088 |
? |
Washer, aluminum |
heater return pipes -Twin Cam (2) |
0.520x0.775x0.090 |
AUA1405 |
375-025 |
Washer, fiber |
fuel pump inlet to body, fiber washer |
0.530x0.750x0.060 |
2K4954 |
324-671 |
Washer, fiber, red ¼ BSP |
water drain taps, engine and raditor – alt 2K4975 |
0.530x0.750x0.060 |
2K4975 |
324-671 |
Washer, fiber, red ¼ BSP |
water drain taps, engine and raditor – alt 2K4954 |
0.532x0.738x0.055 |
3H550 |
324-740 |
Washer, copper, 0.532 ID |
master cylinder clutch banjo top, clutch slave banjo top, |
0.560x0.653x0.020 |
AUC3233 |
370-410 |
Washer, copper |
lower jet bearing ,see Carburetors |
0.560x0.800x0.050 |
??? |
??? |
Washer, fiber |
SU fuel pump filter bottom plug |
0.590x0.816x0.070 |
AUA1442 |
375-035 |
Washer, fiber |
fuel pump outlet union to body,fiber washer (could be copper crush washer from Moss) |
0.600x0.800x0.070 |
AUA1479 |
375-035 |
Washer -cage (fiber,thin) |
fuel pump outlet, fiber washer, (could be copper crush washer) |
0.640x0.860x0.074 |
AED172 |
324-805 |
Washer, copper (5/8" nom. ID) |
Temperature, gauge adapter, 1275 engine 1968-'74 Spridget cars with cross-flow radiator |
0.660x0.890x0.075 |
6K431 |
324-??? |
Washer, copper (16.5mm nom. ID) |
oil drain plug -Twin Cam (3/8-BSPP thread, 16.3mm, 19-TPI) |
0.699x0.890x0.060 |
AUC2141 |
370-650 |
Washer, fiber 11/16 ID |
float cover banjo bolt, see Carburetors |
0.699x0.890x0.060 |
AUC4900 |
370-650 |
Washer, fiber 11/16 ID |
caruretor damper, see Carburetors |
0.820x1.120x0.030 |
2K4982 |
324-650 |
Washer, fiber 13/16 ID |
oil pressure relief valve cap (2) |
0.825x1.040x0.075 |
6K501 |
324-800 |
Washer, copper |
crush washer, engine oil unions, external oil pipe and oil cooler |
0.825x1.040x0.075 |
ARH1112 |
324-800 |
Washer, copper (crush) |
crush washer -not available use AHH6701 (adapter with bonded seal) |
--- |
ARH1113 |
435-590 |
Adapter union (separate) |
engine external oil pipe and oil cooler |
--- |
AHH6701 |
N/A |
Adapter union (assembly) |
union and bonded seal, replaces ARH1112 seal and ARH1113 adapter |
1.025x1.250x0.055 |
88G208 |
324-820 |
Washer, copper, thin, 1.045 ID |
speedo drive on gearbox -88G208 part no changed to 51K3169 |
1.025x1.250x0.055 |
51K3169 |
324-820 |
Washer, copper, thin, 1.045 ID |
speedo drive on gearbox -part no changed, was 88G208 |
0.218x0.625x.062 |
|
37-1994 |
Washer, Stat-O-Seal 1/ 4 |
WSAE0.25 |
0.344x0.687x.062 |
|
37-1995 |
Washer, Stat-O-Seal 5/16 |
WSAE0.31 |
0.406x0.812x.062 |
|
37-2000 |
Washer, Stat-O-Seal 3/8 |
WSAE0.37 |
0.469x0.922x.062 |
|
|
Washer, Stat-O-Seal 7/16 |
WSAE0.43 |
0.531x1.062x.080 |
|
37-1999 |
Washer, Stat-O-Seal 1/2 |
WSAE0.50 |

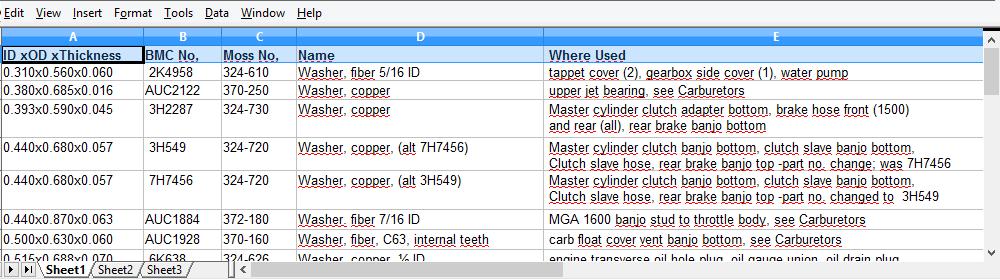

Click for sortable Spreadsheet copy
Tech Tip: To anneal a work hardened copper washer, heat to red hot and dip it immediately in cold water.
