COLLISION REPAIR Estimator Guide for MGA -- BD-100A8
PAGE A8
M G A |
|
3-61
1956 - TO DATE |
* ARE FACTORY SUGGESTED ALLOWANCES
OTHER GLENN MITCHELL ESTIMATED

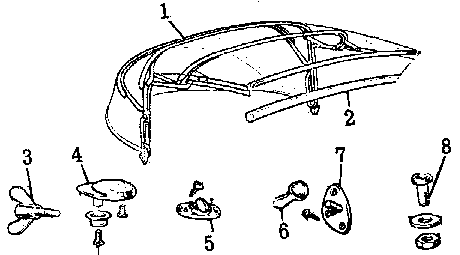

TOP, ROADSTER
SOFT TOP
| | TIME | PRICE |
 SOFT TOP ASSY, exc. | * 1.0 | 100.25 |
| 1600 | 1.0 | 102.22 |
| 1 Frame | 1.5 | 48.94 |
| 2 Stick, front | | 9.45 |
| 3 Wing bolt, top to w/s | | .89 |
| COVER, top | 1.5 | 55.93 |
| 4 Plate, retainer at rear | | 1.46 |
| 5 Turn button fastener | | .34 |
| 6 Locking handle, side curtain | | 1.19 |
| 7 Stud, side curtain | | .82 |
| 8 Socket, curtain pad | | 1.07 |
| TONNEAU COVER | | 39.78 |
HARDTOP
| | TIME | PRICE |
| HARD TOP ASSY, w/o Illustration | | $375.35 |
| Window, rear | | |
| Bracket, top main side | | 3.75 |
| rear retaining | | 2.39 |
| Clip w/nut, side retaining | | 3.60 |
| Weatherstrip | |
| Rear window | | |
| Rear body | | |
| Side roof | |
| Fr. roof | |
| Strut, rr. window | |

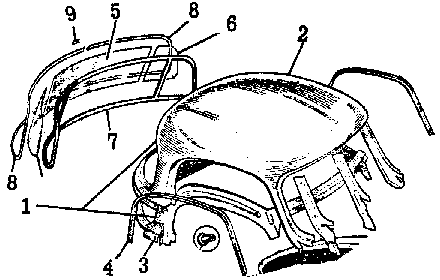

ROOF, COUPE
| | TIME | PRICE |
| 1 ROOF ASSY | 25.0 | 359.55 |
| 2 Panel only, roof | 30.0 | 309.45 |
| 3 Reinforcement assy. | | 47.94 |
| 4 Drip Trough | # | 9.47 |
| # R&R in conjunction w/roof panel replace | 1.0 | |
| R&R in conjunction w/roof repair w/headliner removed | 2.5 | |
| 5 GLASS, back window, center | 1.3 | 15.95 |
| 6 side | 1.0 | 9.02 |
| 7 Weatherstrip, back glass | 3.0 | 15.95 |
| 8 Moulding, rt. or lt. | | 3.98 |
| 9 Joint cover, mould | | .43 |
INNER PANEL TIME W.OUTER REMOVED

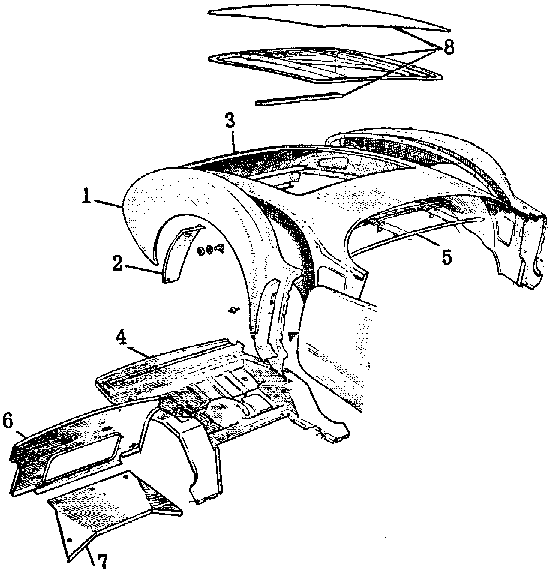

REAR BODY
| | | TIME | PRICE |
| 1 REAR FENDER, exc. | * 1.8 | 30.53 |
| Coupe | * 1.8 | 31.83 |
| Piping, between fen. & rr. body | | 1.32 |
| 2 Splash plate exc. | .5 | 5.00 |
| Coupe | .5 | 3.11 |
| REAR BODY SURROUND PANEL ASSY, w/reinf. | | 164.95 |
| 3 outer panel exc. | # | 19.5 | 44.44 |
| Coupe | # | 25.0 | 51.87 |
| # Time w/fen. removed | |
| 4 FLOOR, rr. body | | 50.39 |
| 5 Reinforcement, rr. body surround exc. | 4.0 | 22.47 |
| Coupe | 3.0 | 17.05 |
| 6 Panel, rr. bulkhead | | 11.56 |
| 7 Cover, battery | | 12.09 |
| 8 TRUNK LID | 1.0 | 62.42 |
| Hinge | * .8 | 1.87 |
| Lock | * .2 | 3.25 |
| Striker plate | * .1 | .40 |
| Rod, supt. | * .2 | .68 |
| release | .3 | .47 |
| Weatherstrip | * .8 | 3.25 |

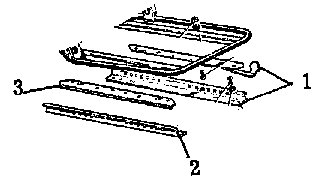

SEAT
| | TIME | PRICE |
| SEAT | | |
| 1 Slide assy. | .5 | 1.89 |
| 2 Rain to floor | .5 | .93 |
| 3 Slide catch | | 1.89 |
|
GLENN MITCHELL COLLISION ESTIMATOR INC.
|
|
