Vehicle Performance Analysis - Page 2 of 3

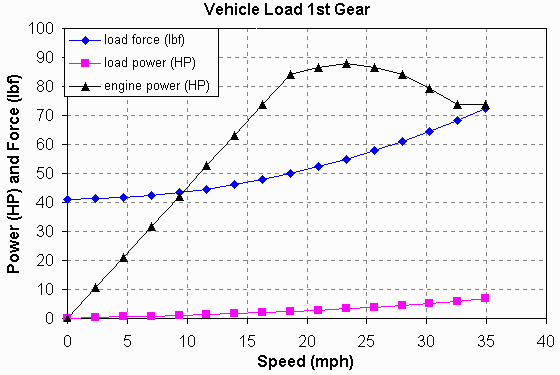

First Gear
vehicle load load Se AC42 FB1-4001 SR218N
speed force power (rpm) HP HP HP
(mph) (lbf) (HP)
0.0 41.1 0.0 0.0 0.0 164.1 0.0
2.3 41.3 0.3 500.0 10.5 154.5 9.1
4.7 41.7 0.5 1000.0 21.1 144.8 21.9
7.0 42.4 0.8 1500.0 31.6 135.2 32.9
9.3 43.3 1.1 2000.0 42.1 125.5 42.1
11.6 44.6 1.4 2500.0 52.7 115.9 45.6
14.0 46.1 1.7 3000.0 63.2 106.2 42.1
16.3 47.9 2.1 3500.0 73.7 96.6 44.2
18.6 50.0 2.5 4000.0 84.3 86.9 44.9
21.0 52.4 2.9 4500.0 86.6 77.2 44.2
23.3 55.0 3.4 5000.0 87.8 67.6 42.1
25.6 57.9 4.0 5500.0 86.5 57.9 42.5
27.9 61.1 4.6 6000.0 84.3 48.3 42.1
30.3 64.6 5.2 6500.0 79.4 38.6 41.1
32.6 68.3 5.9 7000.0 73.7 29.0 39.3
34.9 72.3 6.7 7500.0 73.7 19.3 36.9
37.3 76.6 7.6 8000.0 76.2
Second Gear
0.0 41.1 0.0 0.0 0.0 164.1 0.0
3.8 41.5 0.4 500.0 10.5 154.5 9.1
7.7 42.6 0.9 1000.0 21.1 144.8 21.9
11.5 44.5 1.4 1500.0 31.6 135.2 32.9
15.3 47.1 1.9 2000.0 42.1 125.5 42.1
19.1 50.5 2.6 2500.0 52.7 115.9 45.6
23.0 54.6 3.3 3000.0 63.2 106.2 42.1
26.8 59.5 4.3 3500.0 73.7 96.6 44.2
30.6 65.1 5.3 4000.0 84.3 86.9 44.9
34.5 71.5 6.6 4500.0 86.6 77.2 44.2
38.3 78.6 8.0 5000.0 87.8 67.6 42.1
42.1 86.5 9.7 5500.0 86.5 57.9 42.5
45.9 95.1 11.7 6000.0 84.3 48.3 42.1
49.8 104.5 13.9 6500.0 79.4 38.6 41.1
53.6 114.6 16.4 7000.0 73.7 29.0 39.3
57.4 125.5 19.2 7500.0 73.7 19.3 36.9
61.2 137.1 22.4 8000.0 76.2

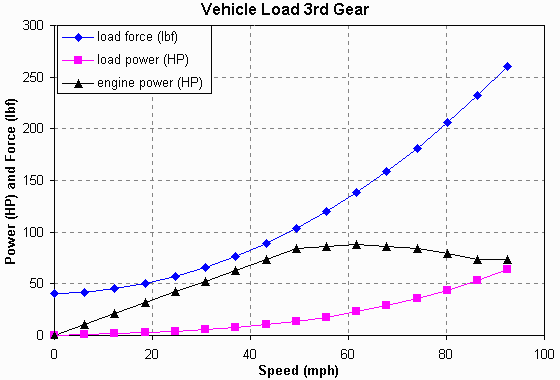

Third Gear
vehicle load load Se AC42 FB1-4001 SR218N
speed force power (rpm) HP HP HP
(mph) (lbf) (HP)
0.0 41.1 0.0 0.0 0.0 164.1 0.0
6.2 42.1 0.7 500.0 10.5 154.5 9.1
12.3 45.0 1.5 1000.0 21.1 144.8 21.9
18.5 49.9 2.5 1500.0 31.6 135.2 32.9
24.7 56.7 3.7 2000.0 42.1 125.5 42.1
30.8 65.5 5.4 2500.0 52.7 115.9 45.6
37.0 76.2 7.5 3000.0 63.2 106.2 42.1
43.2 88.8 10.2 3500.0 73.7 96.6 44.2
49.3 103.4 13.6 4000.0 84.3 86.9 44.9
55.5 120.0 17.8 4500.0 86.6 77.2 44.2
61.7 138.5 22.8 5000.0 87.8 67.6 42.1
67.9 158.9 28.8 5500.0 86.5 57.9 42.5
74.0 181.3 35.8 6000.0 84.3 48.3 42.1
80.2 205.7 44.0 6500.0 79.4 38.6 41.1
86.4 232.0 53.4 7000.0 73.7 29.0 39.3
92.5 260.2 64.2 7500.0 73.7 19.3 36.9
98.7 290.4 76.4 8000.0 76.2
Fourth Gear
vehicle load load Se AC42 FB1-4001 SR218N
speed force power (rpm) HP HP HP
(mph) (lbf) (HP)
0.0 41.1 0.0 0.0 0.0 164.1 0.0
8.5 43.0 1.0 500.0 10.5 154.5 9.1
17.0 48.5 2.2 1000.0 21.1 144.8 21.9
25.4 57.7 3.9 1500.0 31.6 135.2 32.9
33.9 70.5 6.4 2000.0 42.1 125.5 42.1
42.4 87.1 9.8 2500.0 52.7 115.9 45.6
50.9 107.3 14.5 3000.0 63.2 106.2 42.1
59.3 131.2 20.8 3500.0 73.7 96.6 44.2
67.8 158.8 28.7 4000.0 84.3 86.9 44.9
76.3 190.0 38.7 4500.0 86.6 77.2 44.2
84.8 224.9 50.8 5000.0 87.8 67.6 42.1
93.2 263.5 65.5 5500.0 86.5 57.9 42.5
101.7 305.8 82.9 6000.0 84.3 48.3 42.1
110.2 351.8 103.4 6500.0 79.4 38.6 41.1
118.7 401.4 127.0 7000.0 73.7 29.0 39.3
127.1 454.7 154.2 7500.0 73.7 19.3 36.9
135.6 511.7 185.0 8000.0 76.2
|
