COLLISION REPAIR Estimator Guide for MGA -- BD-100A6
PAGE A6
M G A |
|
6-61
1956 - TO DATE |
* ARE FACTORY SUGGESTED ALLOWANCES
OTHER GLENN MITCHELL ESTIMATED

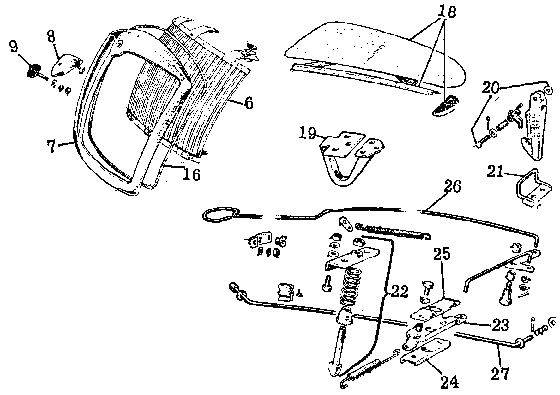

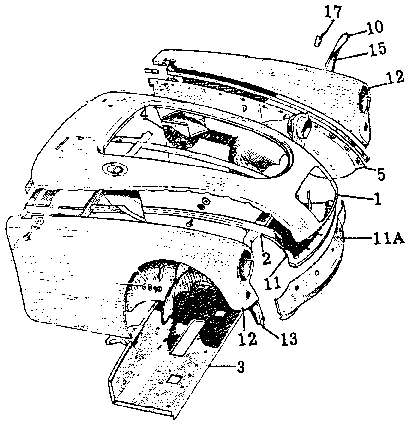

FRONT BODY
| | | TIME | PRICE |
 FRONT END ASSY, w/surround &
inner panels exc. | | 252.80 |
| Coupe | | | |
| 1 SURROUND, hood exc. | # | * 27 5 | 62.42 |
| Coupe | # | * 32.5 | 84.90 |
| # Cut & Splice in hood opening | 24.5 | |
| 2 Reinforcement, surround exc. | 4.0 | 43.70 |
| Coupe | 4.0 | 44.94 |
| 3 Panel, fr. firewall | | 25.97 |
| 4 Box Assy., air duct | | 5.31 |
| 5 "MGA" Grille, air duct exc. | .3 | 3.28 |
| use on twin cam car | .3 | 3.75 |
| GRILLE ASSY, w/case & badge | * .5 | 56.15 |
| 6 Grille | O/H | 1.0 | 22.77 |
| 7 Case | O/H | 1.0 | 26.97 |
| 8 False nose | O/H | 1.0 | 6.60 |
| 9 Badge | 3.17 |
| 10 Piping | .41 |
| 11 PANEL, front radiator | # | 8.0 | 10.20 |
| # R&R w/surround removed. | | 5.0 | |
| 11A VALANCE, behind fr. bumper | | 18.57 |
| 12 FRONT FENDER exc. | * 3.5 | 83.55 |
| Coupe | * 3.5 | 64.92 |
| MIRROR, rear view | .7 | 7.88 |
| 13 PANEL, fr. fen. inner, rt. | 8.0 | 43.95 |
| lt. exc. | 8.0 | 45.27 |
| 1600 | 8.0 | 43.95 |
| Coupe | 8.8 | 46.94 |
| 14 Piping, fr. fen. | 1.50 |
| 15 Splash plate, fr. fen. | .7 | 5.00 |
| 16 Seal, splash plate | 1.53 |
| 17 Bracket, splash plate | 1.07 |
| |
| 18 HOOD | 1.3 | 75.93 |
| 19 Hinge | * .8 | 1.87 |
| 20 Safety Catch | .3 | .96 |
| 21 Striker, catch | .3 | .61 |
| 22 PIN ASSY, lock | .3 | 2.65 |
| 23 Lock slider | O/H | * 1.0 | .93 |
| 24 supt. | | | .39 |
| 25 guide plate | | | .13 |
| 26 ROD, lock release | | | 1.17 |
| 27 prop | | * .2 | 1.36 |
INSTRUMENT PANEL
| | | TIME | PRICE |
| INSTRUMENT PANEL, w/o illustration exc | * 4.8 | 5.49 |
| Coupe w/o cover | | | 7.53 |
| Cover | | | |

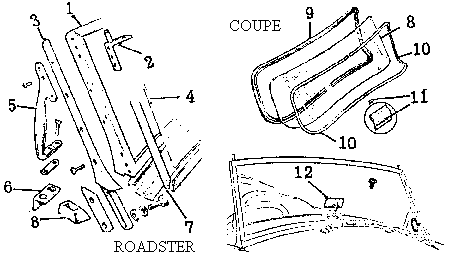

WINDSHIELD
ROADSTER
| | | TIME | PRICE |
| WINDSHIELD ASSY., Roadster, exc. | * 1.5 | 142.86 |
| 1600 | | * 1.5 | 122.90 |
| 1 FRAME, w/top, pegs, exc. | O/H | * 3.3 | 57.39 |
| 1600 | | | 59.57 |
| 2 Peg, top | O/H | * 3.3 | 3.58 |
| 3 Stantion, pillar | | 1.0 | 19.76 |
| 4 GLASS, Car Mfg. | O/H | 3.3 | 44.70 |
| Glass Co. | O/H | 3.3 | 52.80 |
| 5 Grab handle | | | 4.82 |
| 6 Reinforcement, handle | | | .76 |
| 7 Weatherstrip to cowl | | 2.0 | 3.00 |
| stantion grommet | | | .91 |
COUPE
| | | TIME | PRICE |
| WINDSHIELD, COUPE | | |
| 8 GLASS, Car Mfg. | | 3.0 | 66.99 |
| Glass Co. | | 3.0 | 52.40 |
| 9 Weatherstrip | | | 9.17 |
| 10 Moulding. right or left | | | 3.98 |
| 11 Joint cover | | | .43 |
| 12 MIRROR - Coupe r roadster | | | 2.75 |
| COVER, TONNEAU | | | 39.78 |
| TRIM ROLL, dash | | | 9.10 |
|
GLENN MITCHELL COLLISION ESTIMATOR INC.
|
|
