Octagonal Wrench(s) for Rear Hub Nut, page-4 -- TS-106C

On Dec 6, 2020, Ahmed EL Abasiry in Calgary, AB, Canada wrote:
"I decided to make my own. I found a section of square tubing. Cut it diagonally, and bent it on the vise to change the angle from 90* to 135* (Octagon).
rear hub socket fabricated rear hub socket fabricated rear hub socket fabricated
Now, cut it into 4 pieces (~2" long each). Quick test fit.
rear hub socket fabricated rear hub socket fabricated rear hub socket fabricated rear hub socket fabricated

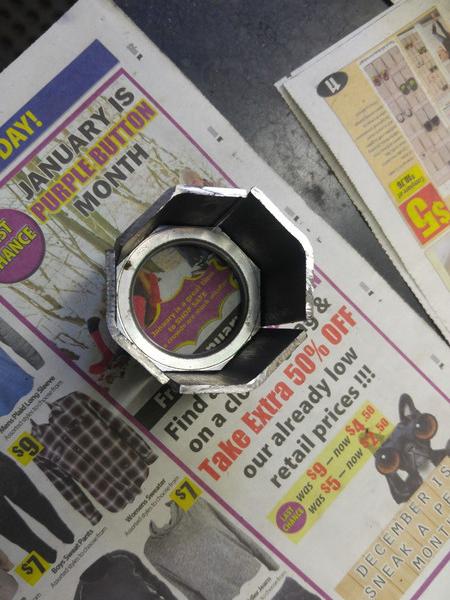

Clamped to the nut. Tack welded. Finished welding, filed edges smooth and de-burred.
rear hub socket fabricated rear hub socket fabricated rear hub socket fabricated rear hub socket fabricated

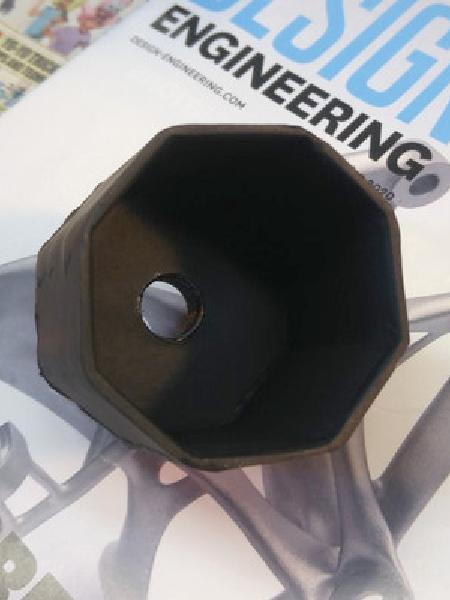

Now I will find a scrap socket with 1/2" drive and weld it to the other end".
rear hub socket fabricated rear hub socket fabricated rear hub socket fabricated
End of story"? Nice job, but that last piece doesn't look like a scrap socket. Looks to me like the center of a grinding disc for an angle grinder.
