ANDREX Friction Shock Absorbers Drawings - FS-125B

On 9/24/2023, Ola Hjørungdal wrote:
"I have had the fun of make some illustration and drawings of the Andrex shock absorbers. I am also working on repair/service manual for the Andrex". -- Ola

Click for larger printable PDF drawings.
Andrex damper front split

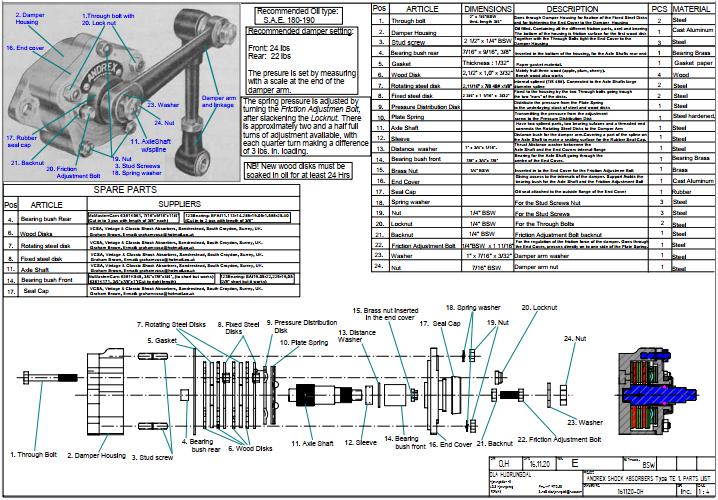

Andrex damper front parts
Andrex damper front_vent
Andrex damper front_housing
Andrex damper internal_axle
Andrex damper front_seal
Andrex damper front_discs

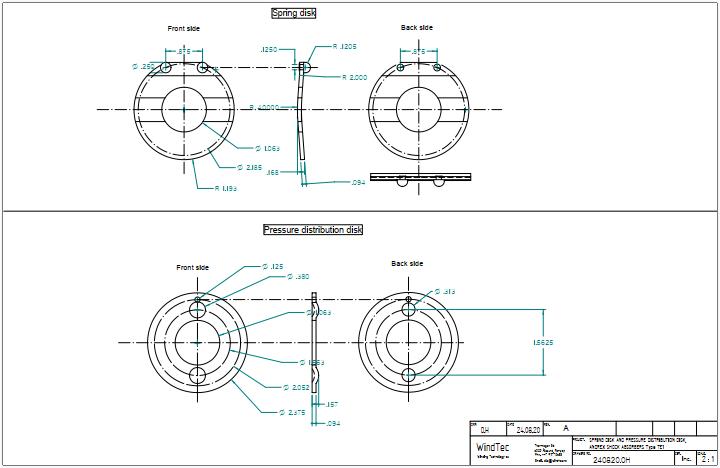

Andrex damper front_discs2
