There are lots of PCR clips in the MGA. The links listed below are only a few examples of specific applications.

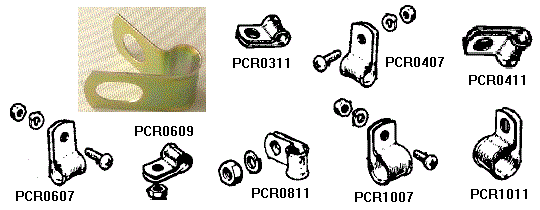

The trick for PCR clips is that they have Rolled Edges to prevent chafing of rubber hose, wiring harness, drive cable, push-pull cable, or scratching of plating or paint from metal pipes. -- The four digits in the part number indicate the pass-through hole diameter in 16ths of an inch, and the screw hole size in 32ds of an inch. For example, PCR0607 means P-Clip-Rolled with 3/8" through hole and 7/32" screw clearance hole (for a 3/16" or #10 mounting screw).

PART NO.  SPL.PAGE  DESCRIPTION
PCR0607   TC.C.2    39 Clip -overflow tube -(relief valve, cooling system, Twin Cam)

For the list of all PCR clips used in MGA, see the prior PCR parts index page.
