PART NO. SPL.PAGE DESCRIPTION
ACH8979 15.N.10 Clip -dash wiring loom (rubber) (2)
ACH8979 15.N.10 Clip -dynamo cable to starter cable (rubber)
ACH8979 16.N.15 Clip -rubber (3) -(optional, cables and connections, 1600 and
1600-MK-II)
ACH8979 TC.N.12 Clip dynamo cable to starter cable rubber -(cables and connections,
electrical, Twin Cam)
ACH8979* Clip for dash wiring loom and control cables (rubber).
Alternate part numbers:
* JOHN BULL REGISTERED 747240 Type S
* Anglo Parts 083.058
* Moss Motors USA 161-850

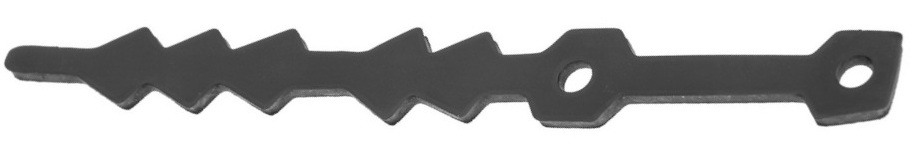

These rubber ties have been used back as far as the 1930's on cars and British motor bikes. They are used to secure wiring harness, washer tube piping, choke & heater cables, but not limited to these items.
Specification: Rubber flexible composition.
Two hole fixing points. (depending on diameter of piping or cables to secure)
Dimensions: 4-1/4" (118mm) long x 0-9/16" (99mm) wide at widest point, 0-5/16" (7mm) at narrow point x 0-3/32" (3mm) thick.
Fitted to the following vehicles:
MG MGTC, MGTD, MGTF 1945-1954
MG MGA 1954-1962
MG MGB, MGBGT 1962-1980
MG MGC, MGCGT 1967-1969
MG MGBGT V8 1973-1976
MG MIDGET 1958-1979
MORRIS MINOR 1956-1971
TRIUMPH HERALD 1958-1971
TRIUMPH SPITFIRE 1962-1980
TRIUMPH TR2,TR3,TR3A,TR4,TR4A, TR250, TR5, TR6 1953-1976
ASTON MARTIN DB2-6 1950-1970
JENSEN INTERCEPTOR 1966-1976
May be superseded by:
13H6107 Strap, cable
Also see AHH5440.
|
