COLLISION REPAIR Estimator Guide for MGA -- BD-100A5
6-61 1956 - TO DATE |
|
PAGE A5 M G A |
ELECTRICAL
PARTS LISTED HERE ARE "LUCAS"
* ARE FACTORY SUGGESTED ALLOWANCES
OTHER GLENN MITCHELL ESTIMATED

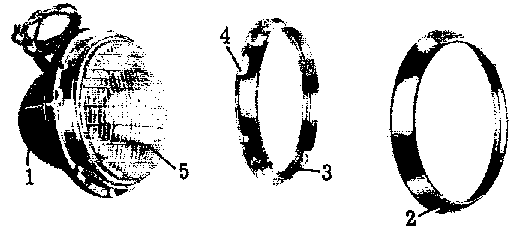

HEADLAMP
| TIME | PRICE |
1 HEADLAMP ASSY, w/o door | * 1.0 | 12.75 |
2 Door exc. | .2 | 3.50 |
1600 | | |
excluder, dust | | .60 |
3 Rim, retainer exc. | .3 | 12.60 |
1600 | | 2.75 |
4 seating exc. | .3 | 2.60 |
1600 | | 2.75 |
gasket to fen. exc. | | .75 |
1600 | | 1.00 |
5 Sealed beam | .2 | 2.65 |

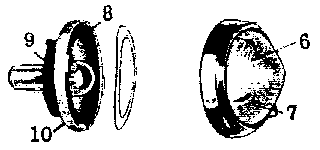

PARKLAMP
| TIME | PRICE |
PARKING LAMP exc. | * .4 | 4.85 |
1600 | | 6.20 |
6 Lens & rim exc. | * .1 | 1.95 |
1600 | | 2.25 |
7 Lens only exc. | * .1 | .70 |
1600 | | 1.90 |
8 Rubber, lens | | .25 |
9 to fen. | | .10 |
10 Body exc. | .6 | 1.60 |
1600 | | 1.10 |
Bulb, parking (G.E.) | * .1 | .20 |
signal | * .1 | .85 |
FOG LAMP
| TIME | PRICE |
FOG LAMP exc. | * 1.0 | 14.75 |
11 Light unit | .3 | 4.90 |
Bulb holder | | 1.25 |
Bulb | | 1.35 |
TAIL LAMP
| TIME | PRICE |
TAIL LAMP exc. | * .5 | 5.75 |
12 Lens w/reflector | * .1 | 1.60 |
13 Rubber, lens | | .35 |
14 to fen | | .50 |
15 Rim & bulb holder | .6 | 2.50 |
Bulb | * .1 | .75 |
16 Plinth, light base exc. | | 2.75 |
1600 | | 5.30 |
LICENSE LAMP
| TIME | PRICE |
LICENSE LAMP exc. | * .3 | 4.50 |
17 Cover | * .1 | 2.80 |
18 Lens | * .1 | 1.00 |
Rubber, lens | | .30 |
Base assy. | | 1.00 |
Bulb | * .1 | .35 |
HORN, SWITCHES & DISTRIBUTOR
(W/O ILLUSTRATION)
| TIME | PRICE |
HORN | * .5 | 9.50 |
M.G. optional high note | * .5 | 13.48 |
Bracket | | .39 |
|
SWITCHES |
|
SIGNAL LIGHT | * .4 | 6.25 |
Knob | | .75 |
DIMMER | * .4 | 2.00 |
IGNITION | * .5 | 2.10 |
LIGHTS | * .3 | 2.75 |
STOP L:IGHT | * .8 | 1.50 |
|
DISTRIBUTOR | * .5 | 27.50 |
Cap | .3 | 2.75 |
|
GLENN MITCHELL COLLISION ESTIMATOR INC.
|
|
